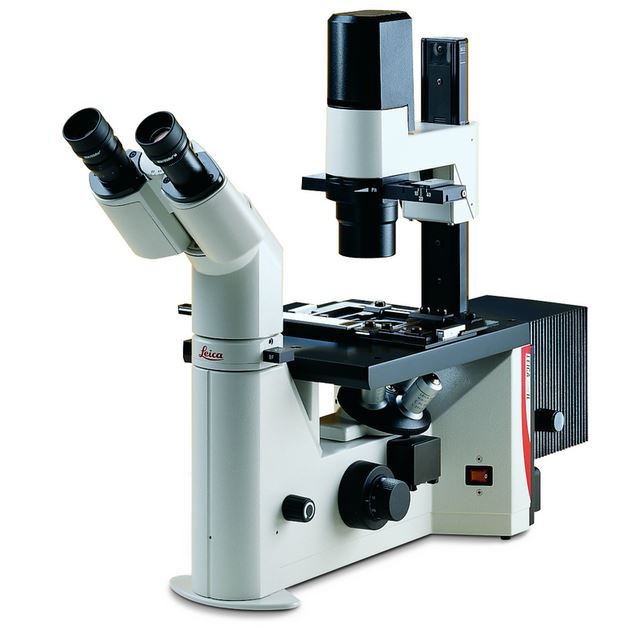

Inverted Microscope and Image Capture System

Make: Leica

Model: DM IL LED

Ideal for cell culture & routine live cell examinations

Contrasting methods:  phase contrast, bright field and integrated modulation contrast

Long working distances to accomodate large culture flasks

Magnifications:  4x, 10x, 20x, 40x

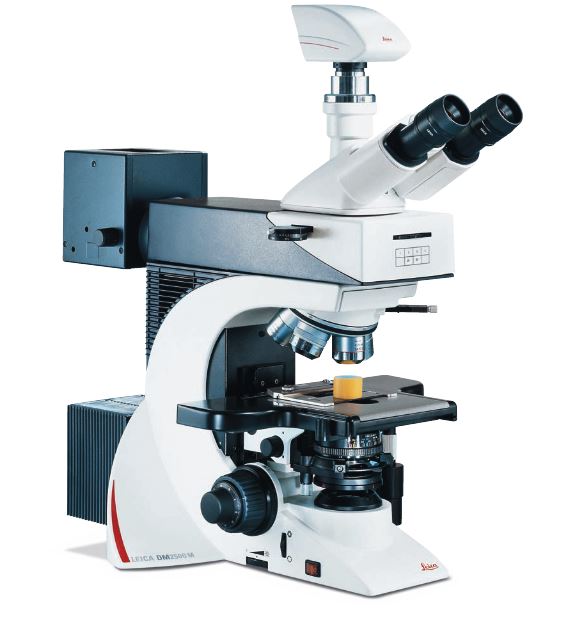

Upright Microscope and Image Capture System

Make: Leica

Model: DM 2500 M

Illumination modes:  Transmitted & Incident

Contrasting methods:  phase contrast, bright field , plane polarized light, fluorescence

Magnifications :  10x, 20x, 40x, 50x, 100x (oil immersion)

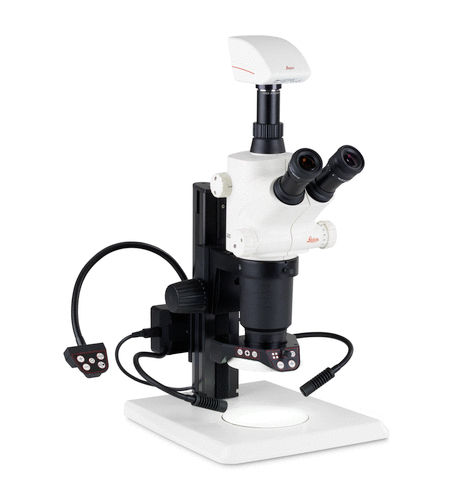

Stereo microscope with image capture system

Make: Leica

Model: S9D +EC3

9:1 zoom
Magnification range 6.1x – 55x
Working distance 122mm
Incident light and Transmitted light mode

Confocal Laser Scanning Microscope

Make: Leica

Model: TC SP8

High speed scanning system with up to 428 frames per second, Large field of view
Excitation lasers 405nm, 488nm, 543nm, 633nm,647nm
Three spectral fluorescent light detectors (two PMTs and a HYD high sensitivity detector), one transmitted light detector
On stage incubation system with temperature, CO2 control and humidifying system.
